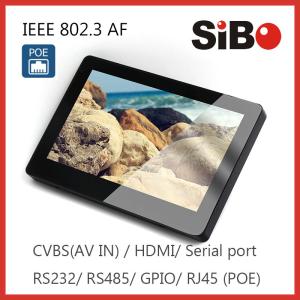

Low Price rs232 touchscreen industrial pc 1024x600 widescreen tablet rs232

Name: Low Price rs232 touchscreen industrial pc 1024x600 widescreen tablet rs232
Brand: SIBO
Price: 1 USD

Wholesale Low Price rs232 touchscreen industrial pc 1024x600 widescreen tablet rs232 from china suppliers

Place of Origin : Shenzhen

Brand Name : SIBO

Certification : CE, FCC

Model Number : Q896

MOQ : 2 units

Delivery Time : 5-25 working days

Payment Terms : T/T

Supply Ability : 2000pcs/month

Packaging Details : 10 pcs in one carton

Contact Now

Low Price rs232 touchscreen industrial pc 1024x600 widescreen tablet rs232

Detailed Product Description

LED Color:	Blue, Green, Red	Power Supply:	DC IN 9V-36V/Power Over Ethernet
Wall Mount:	Inwall, Onwall, Glass Wall Mount	Application:	Loxone Smart House Controlling
PoE:	Power Over Ethernet, IEEE802.3af	Network:	3G/WIFI/Ethernet
System:	Android 6.0	CPU:	Allwinner A83T Octa-Core
Display:	7 Inch IPS Display	Resolution:	*IPS 1024600**

Industrial Automation /Smart Home Control System 7 Inch IPS Screen Wall Mount Android Tablet 2GB RAM With POE

Low Price rs232 touchscreen industrial pc 1024x600 widescreen tablet rs232

For meeting room booking

IPS Screen (G+G glass)
Three color led light on the top to show room status (blue, red, green)
Android OS
In wall / On wall version / Glass wall mount
CVBS , HDMI, Serial port , GPIO , Uart interface
No buttons design
Slim Body with 3 Brackets for wall mounting
Camera & Mic
Support ROOT permissions for private application
No battery design
Auto power on
12V DC / 24V DC available for power
Auto web application (one web page can be showed only on the screen)
POE feature (IEEE 802.3 af)

Application :

Meeting romm Schedule,
Office control region,
Home Automation,
Industrial control

Customized Service:

Customized animation firmware with your logo (available in bulk order)
Temperature/Humidity Sensor
Customized USB jumper for app debugging

Standard accessories;

WIFI
Bluetooth
Camera
Power adapter

Optional accessories:

PoE
NFC RFID Reading module
LED indicating bar
Arduino Nano
RS232
RS485
GPIO

With multi color controllable Indicator on the top (red / green / blue), suitable for meeting room applications, home automation and control

Demo application software and source code will be provided for you to integrate LED control feature into your own software.

Low Price rs232 touchscreen industrial pc 1024x600 widescreen tablet rs232

Specification:

Model Number		Q896S
Hardware Specs	Solution	Allwinner’s A83T processor
	CPU	Octa-core Cortex tm-7a CPU A83T 1.2Ghz
	Display	7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
	RAM	2GB
	Nand Flash	8GB

Software Feature	System	Google Android 6.0
	Audio	One Speaker 1 X 1 Watt (Integrated 3W Amplifier)
	Language	Support multi-languages

Interfaces	Back	Ethernet Interface(RJ45)
		HDMI Out
		USB 2.0 port USD HOST Mode Default, Optional: Jumper Cap for Device Mode
		DC IN Power Terminal (9V-36V)
		Optional:RS232,RS485,1xGPIO IN, 1xGPIO OUT

Network	WIFI+BLUETOOTH	WIFI (802.11b/g/n), Bluetooth 4.0 support BLE
	LAN Port	Ethernet RJ45

Power Supply	DC IN or PoE	DC 9V - 36V or PoE

Boot Up	Auto Boot	Auto Boot Up When Power Supplies

It is Wall Tablet / Desk Tablet, no battery , no buttons (with auto power on feature), it is a serial port Tablet , It is a GPIO tablet, all good features for home automation and so on...

A real POE tablet PC can works with POE standard of IEEE 8023.AF, compatible with 12V DC.

Low Price rs232 touchscreen industrial pc 1024x600 widescreen tablet rs232

DC+ POE for power supply

Low Price rs232 touchscreen industrial pc 1024x600 widescreen tablet rs232

Q896S INTERFACE:

1.HDMI OUT

2.CVBS IN(Removed)

3.DC IN (9-24V)

4.RJ45

5.USB

6.UART, IO , 3W AMP OUT

7.SLOTS FOR MOUNTING

8.SCREWS FOR MOUNTING

In wall installation :

Welcome OEM orders

Contact person

Contact Person: Nancy Li

Mobile/Whatsapp: +86 17688897837

Skype: Nancy@sibo

Wechat: chinasibo

Tel: +86-755-26977944

Fax: +86-755-26977632

Web: http://www.sibosz.net/

SHENZHEN SIBO INDUSTRIAL & DEVELOPMENT Co.,LTD

We support sample order. Welcome your inquiry!
